Hardware

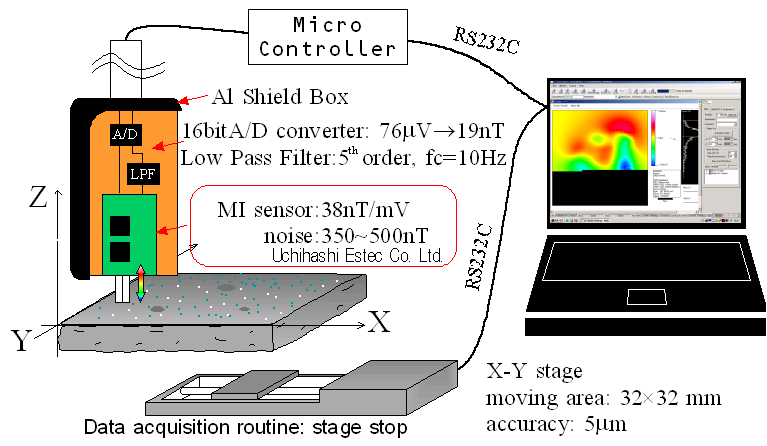

Schematic of the scanner

The main components of this instrument are

1. Shields
   1. Al outer shell
   2. mu-metal shield
2. Circuit boards
   1. power and control unit
   2. MI sensor unit
   3. X-Y stage controller
3. Stages
   1. Z stage
   2. X-Y stage
   3. Sample holder
4. Cables
   1. Power cable
   2. LAN cable for digital communication
   3. RS232C cable
5. PC
